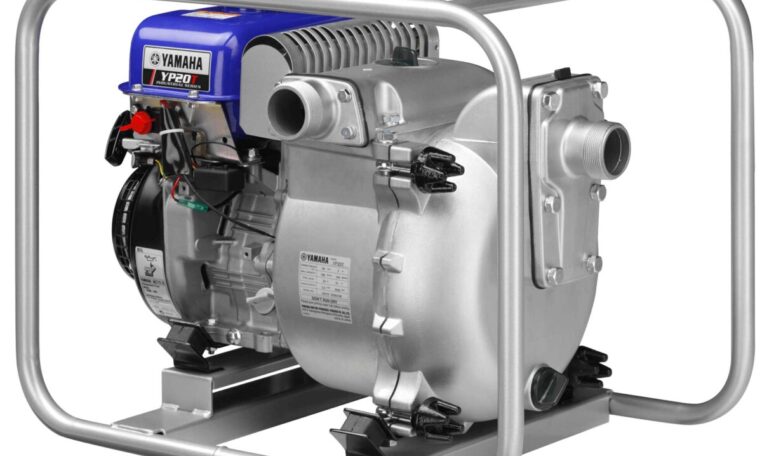

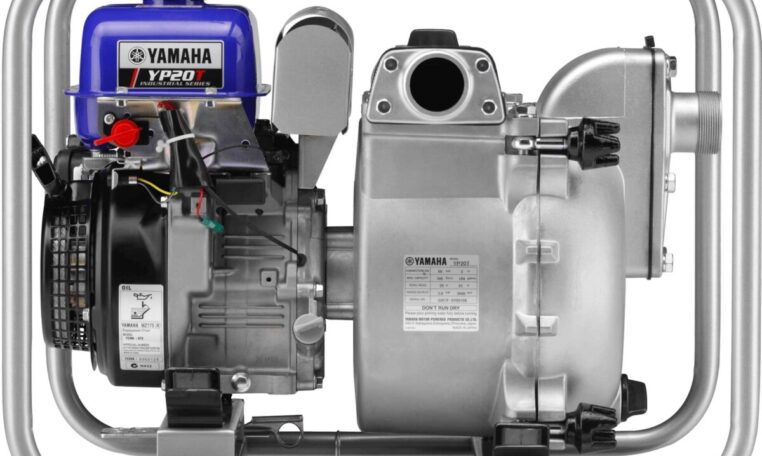

The Yamaha YP20T 2″ trash pump has been engineered to handle dewatering applications with high solid content up to 20mm or 0.78 inches in diameter. Tough hi- chrome impeller and graphite cast iron volute casing with silicon carbide mechanical seals provide excellent long term durability and reliability you have come to expect from Yamaha.
- There are no features available
Dimensions |
|
Dry Weight |
47.5 kg (104.7 lb) |
L x W x H mm (in) |
665 x 462 x 516 mm (26.2 x 18.2 x 20.3") |
Engine |
|
Model |
MZ175 |
Type |
4-Stroke, OHV, 2-valve, forced air-cooled, single |
Displacement |
171cc |
Starting System |
Recoil |
Ignition |
TCI |
Engine Oil Capacity |
1.1 L |
General |
|
Fuel Tank Capacity (L) |
4.5 litres (87 octane - regular fuel) |
Run time |
2.8 hrs |
Pump |
|
Type |
Self-priming, centrifugal, trash pump |
Intake & Discharge Port Size |
50 mm (2") |
Maximum Capacity |
700 litres/min (154 Imp. gal/min) |
Total Head Lift |
28 m (92 ft) |
Suction Head Lift |
8m (26ft) |
Maximum Debris Size (Diameter) |
20 mm (0.79") |
Warranty |
|
Private Use† |
3-year limited |
Commercial Use† |
3-year limited |
