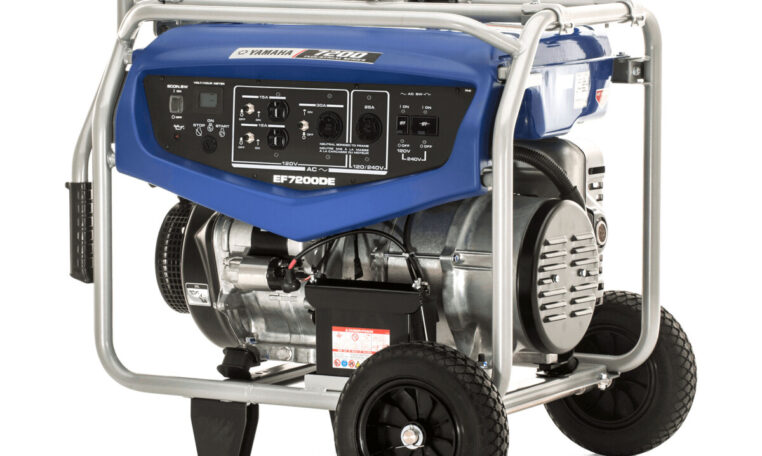

Introducing the all new EF7200DE gas powered generator. This versatile dual 120/240 volt unit is ideal for emergency backup power for home, cottage or business. And due to its high output, it can also be used as a primary power source for job sites or off grid applications too. Easy to use and easy to move, the EF7200DE sets new standards for performance and value.
- There are no features available
Engine |
|
Model |
MZ360; 357cc, air-cooled (fan assist), OHV, 2-valve, 4-stroke, single |
Starting System |
Electric with manual recoil (with auto decompressor) |
Ignition |
Transistor Controlled (TCI) |
Recommended Fuel |
87 octane, regular gasoline |
Engine Oil Capacity |
1.1L |
General |
|
L x W x H mm (in) |
handle folded 740 x 720 x 800 (29.1 x 28.3 x 31.5) handle extended 1070 x 720 x 800 (42.1 x 28.3 x 31.5) |
Dry Weight |
102 kg (225 lb) |
Fuel Tank Capacity (L) |
26 |
Operating Hours (@ rated load) |
8 hrs |
Noise Level (@ 7 metres) |
74.5 dB |
Generator |
|
Type |
Dual voltage, brushless, AVR, synchronous, AC Generator |
Maximum AC Output (watts / amperes) |
7200 W / 60 A @ 120 V & 30 A @ 240 V |
Rated AC Output (watts / amperes) - Continuous Use |
6000 W / 50 A @ 120 V & 25 A @ 240 V |
AC Voltage & Frequency (HZ) |
120 & 240V / 60 HZ |
Voltage Regulator |
Automatic Voltage Regulator (AVR) |
Neutral |
Bonded to frame |
Technical Features |
|
Non-Fuse Circuit Breaker System (NFB) |
Standard |
Dual 120 & 240 Voltage |
Standard |
Auto Choke System |
Standard |
Oil Watch Warning System |
Standard |
Hour Meter |
Standard |
Fuel Level Gauge |
Standard |
Economy Control System |
Standard |
Spark Arrestor |
Standard |
Volt Meter |
Standard |
Warranty |
|
Private Use† |
3-years limited |
Commercial Use† |
3-years limited |
