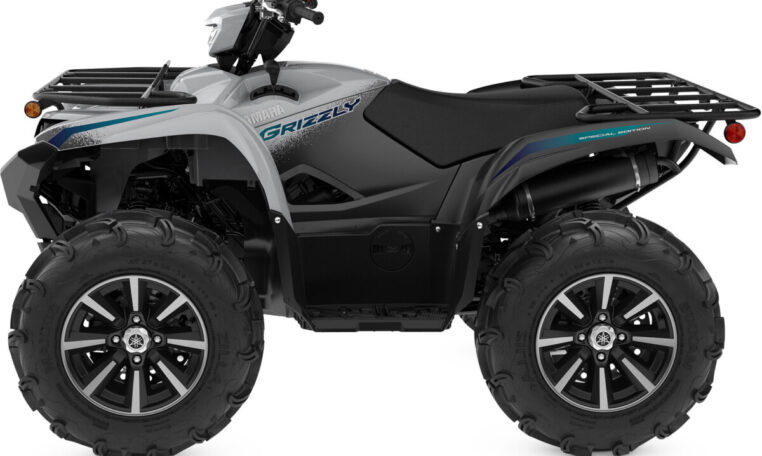

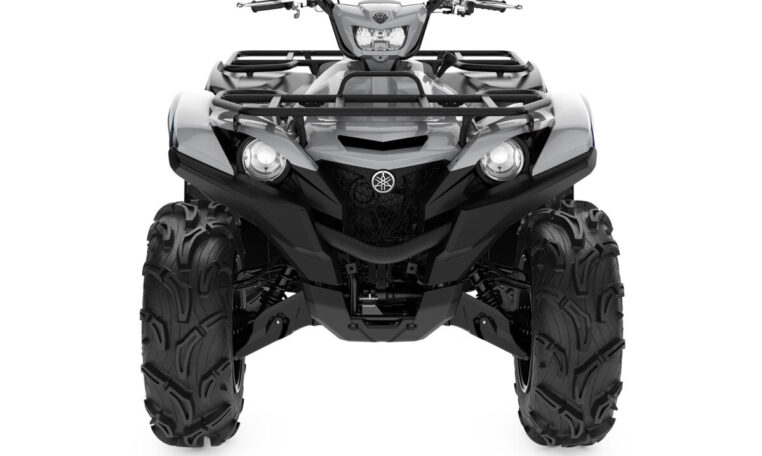

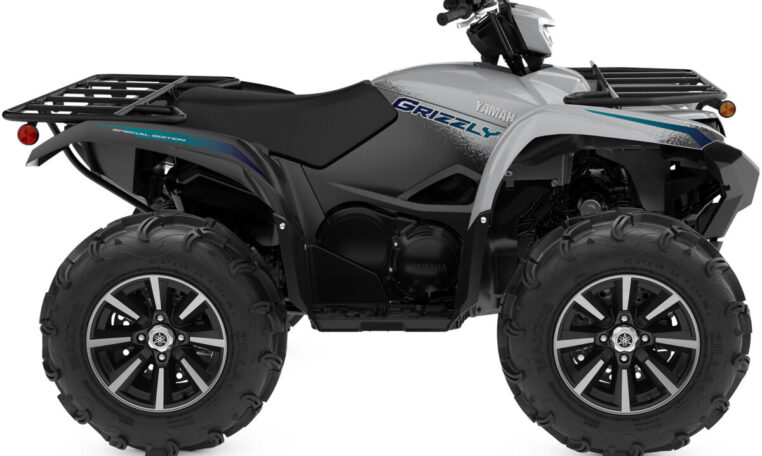

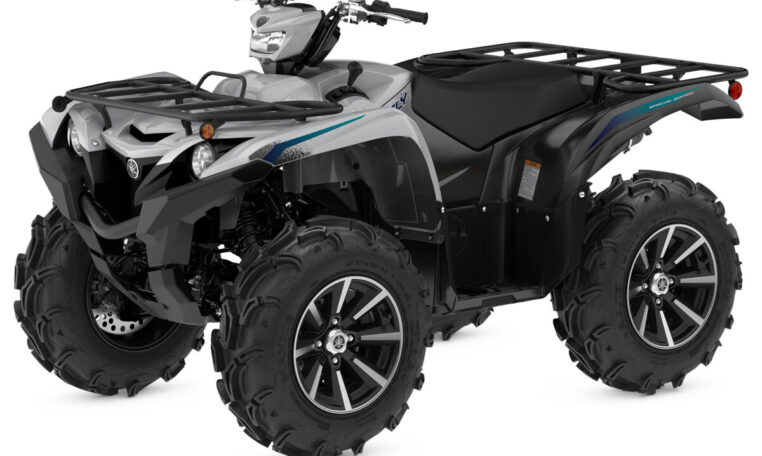

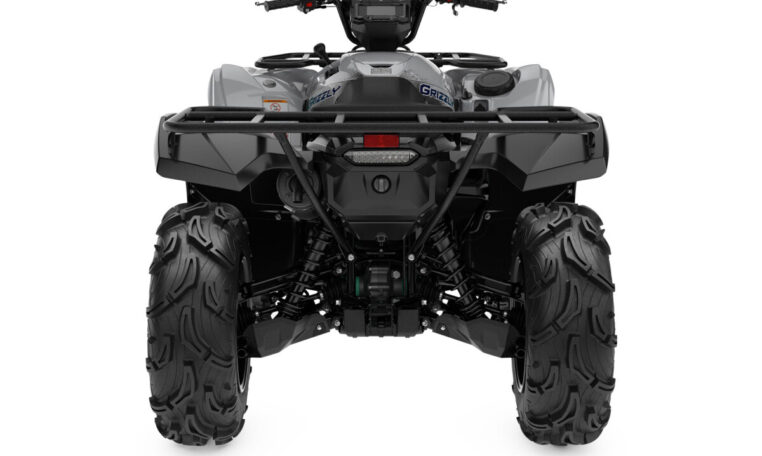

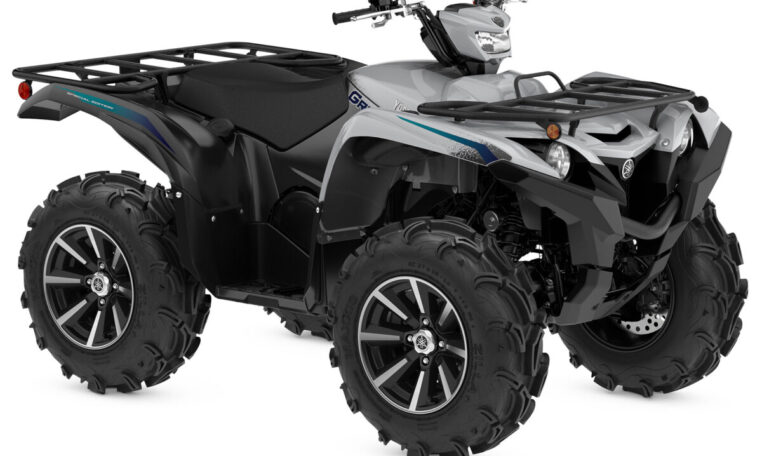

2024 Grizzly EPS SE
The Special Edition Grizzly further enhances rugged terrain capability and confidence with Maxxis® ‘Zilla tires, 14-inch aluminum wheels and high-quality painted bodywork.
- There are no features available
| Chassis | |
|---|---|
| Suspension (Front) | Independent double wishbone; 5-way preload adjustment / 193 mm (7.6") of wheel travel |
| Suspension (Rear) | Adjustable independent double wishbone with anti-sway bar; 5-way preload adjustment / 232 mm (9.1") of wheel travel |
| Brakes (Front) | Dual hydraulic disc |
| Brakes (Rear) | Dual hydraulic disc |
| Tires (Front) | Maxxis® ZILLA® MU01 27 x 10-14 |
| Tires (Rear) | Maxxis® ZILLA® MU01 27 x 10-14 |
| Critical Data | |
|---|---|
| Length | 2070 mm (81.5") |
| Width | 1250 mm (49.2") |
| Height | 1270 mm (50") |
| Wheelbase | 1250 mm (49.2") |
| Maximum Ground Clearance | 300 mm (11.8") |
| Turn Radius | 3708 mm (146") |
| Tread (Front) | 1000 mm (39.4") |
| Tread (Rear) | 975 mm (38.4") |
| Seat Height | 917 mm (36.1") |
| Wet Weight | 342 kg (754 lb) |
| Fuel Capacity | 18 L |
| Rack Capacity (Front) | 50 kg (110 lb) |
| Rack Capacity (Rear) | 90 kg (198 lb) |
| Towing Capacity | 600 kg (1,322 lb) |
| Colour(s) | Silver Metallic / Black Realtree Edge Camouflage |
| Warranty | One year (unlimited mileage) / 10 Year Belt Warranty |
| Engine | |
|---|---|
| Engine | Liquid-cooled, SOHC 4-stroke |
| Displacement | 686cc |
| Bore and Stroke | 102 mm x 84 mm |
| Compression Ratio | 10 : 1 |
| Fuel Delivery | Yamaha Fuel Injection (YFI), 44 mm |
| Ignition | TCI |
| Starting | Electric |
| Lubrication | Wet sump |
| Transmission | Ultramatic V-belt with all-wheel engine braking; H, L, N, R, P |
| Final Drive | On-Command 3-way locking differential; 2WD, 4WD, locked 4WD; shaft |
