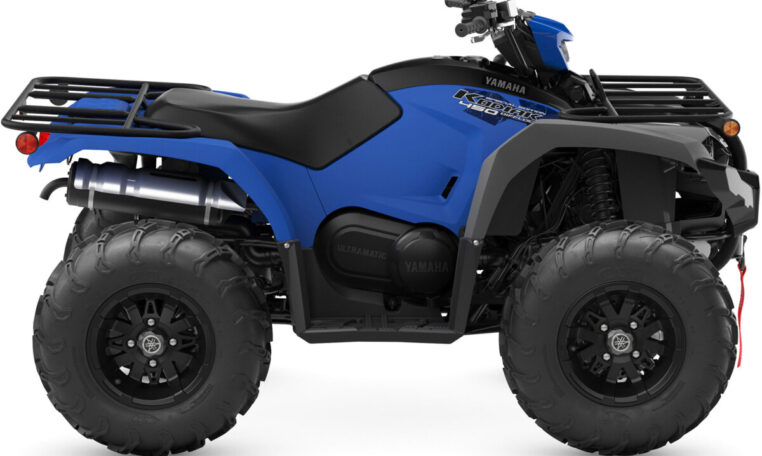

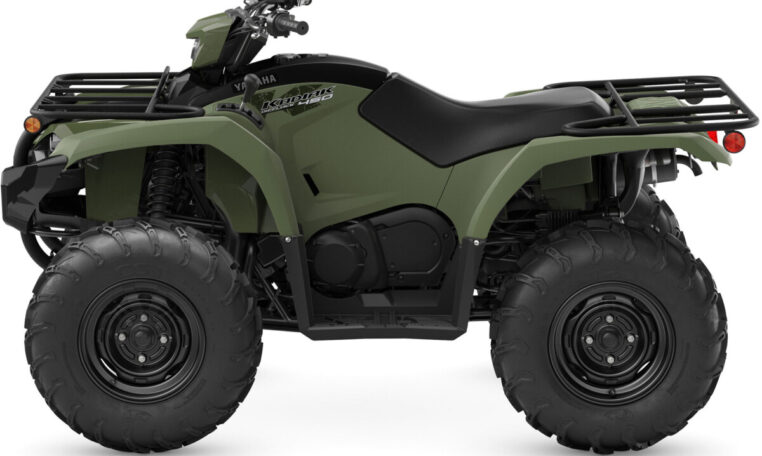

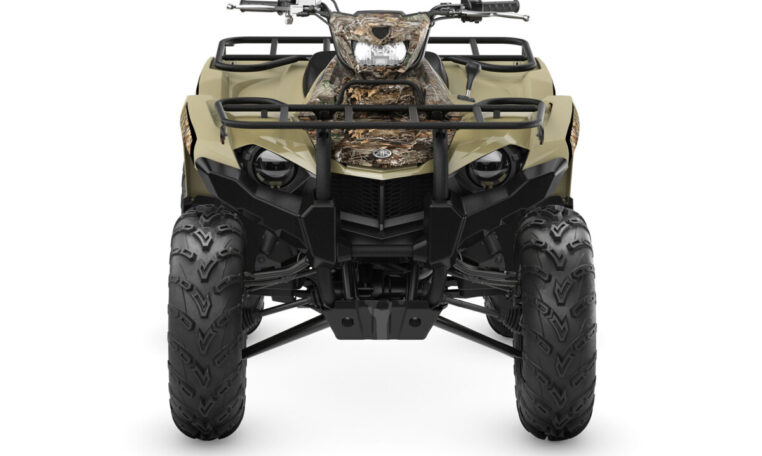

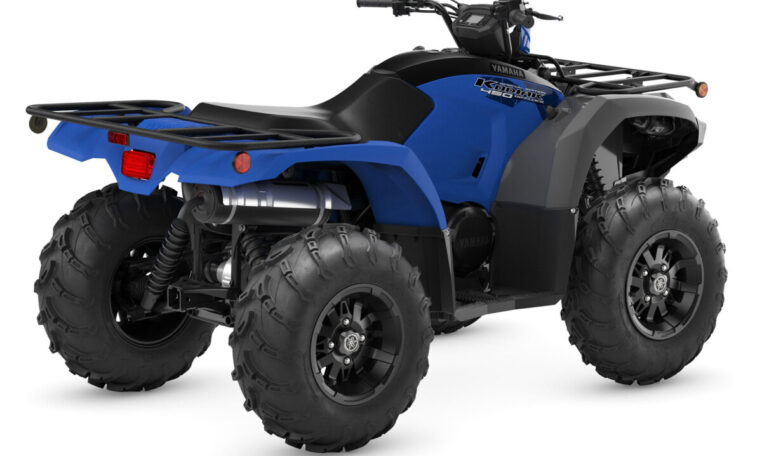

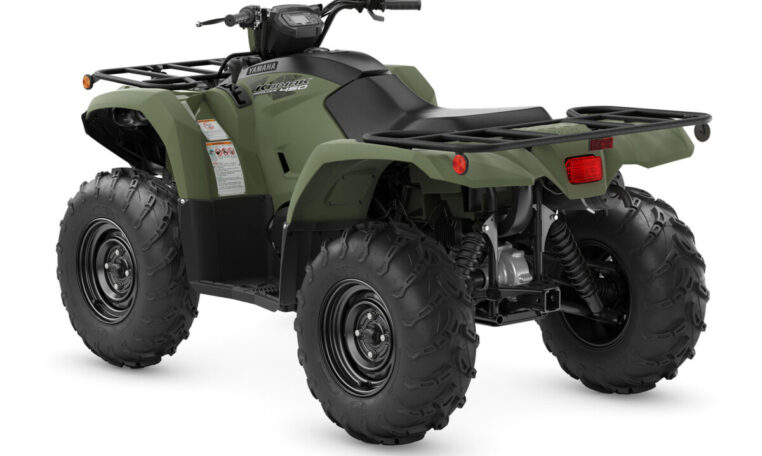

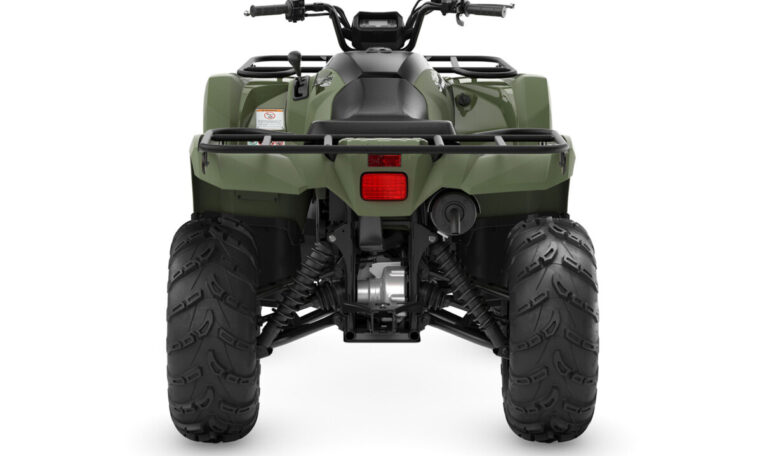

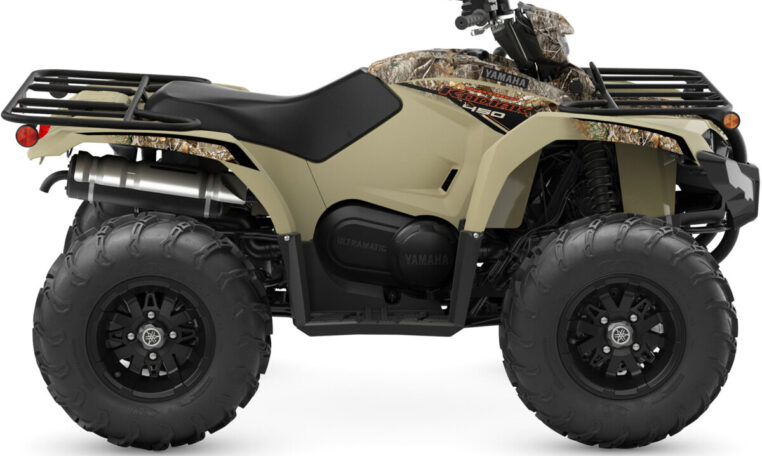

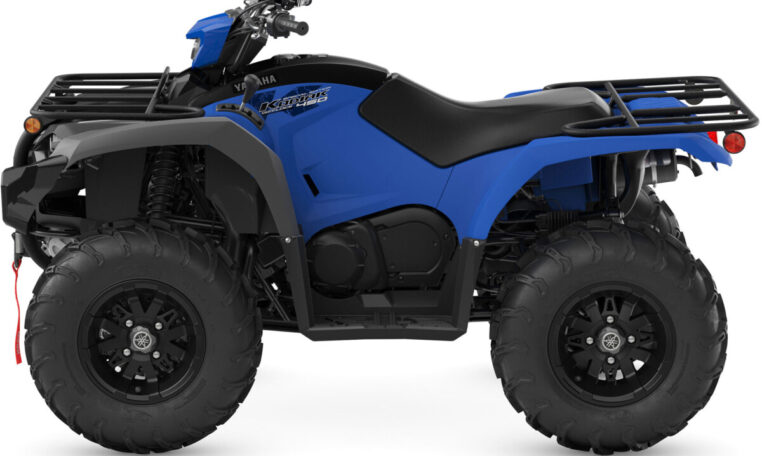

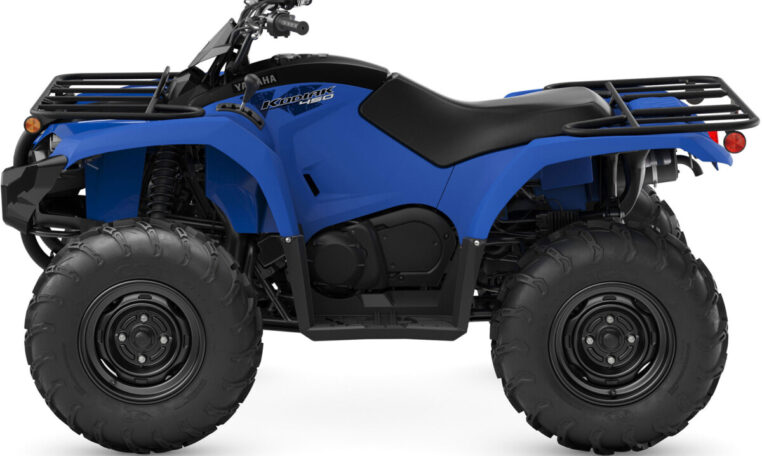

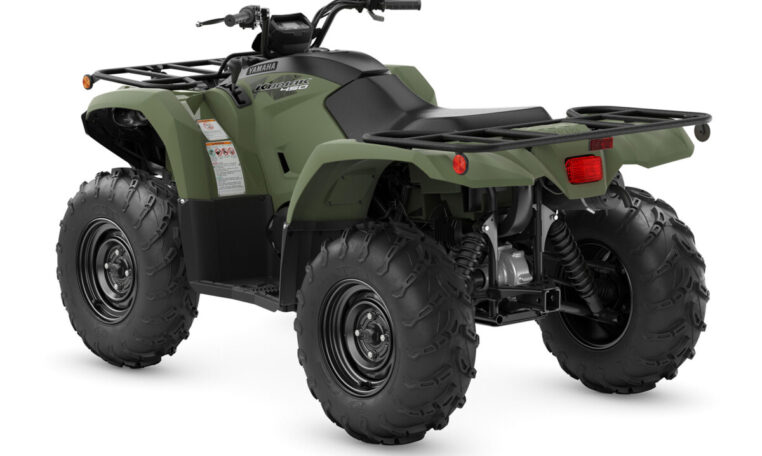

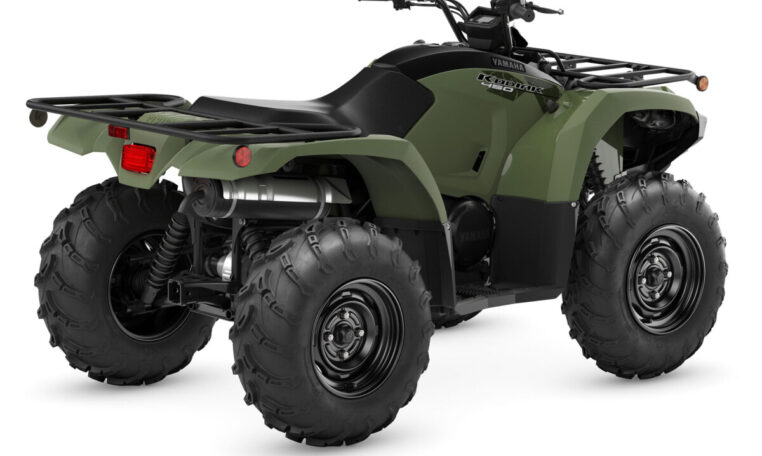

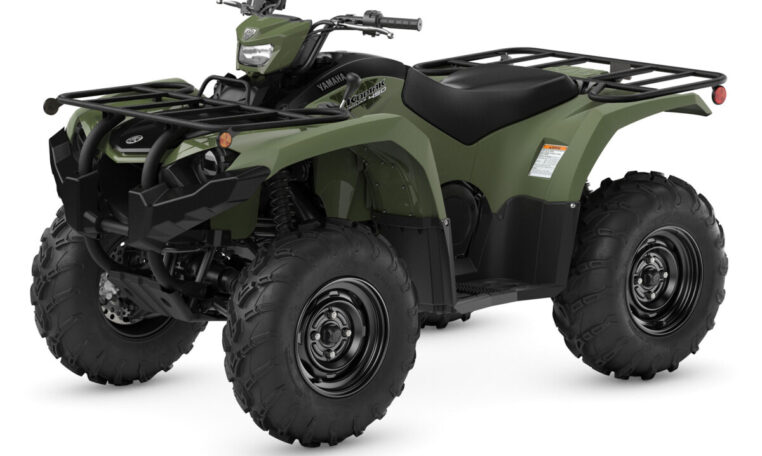

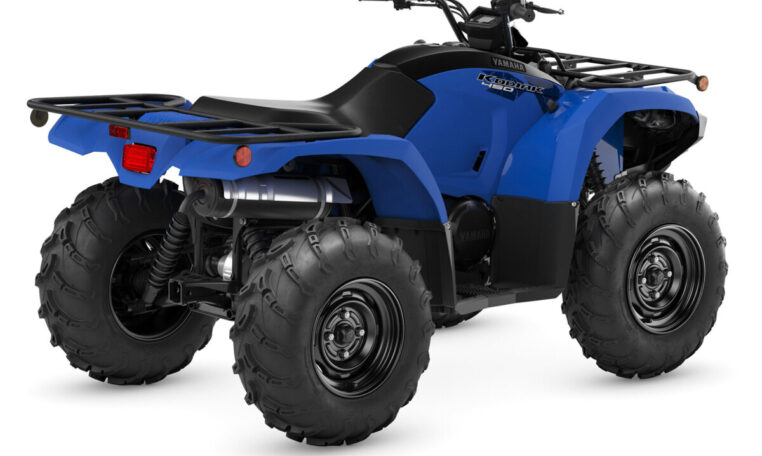

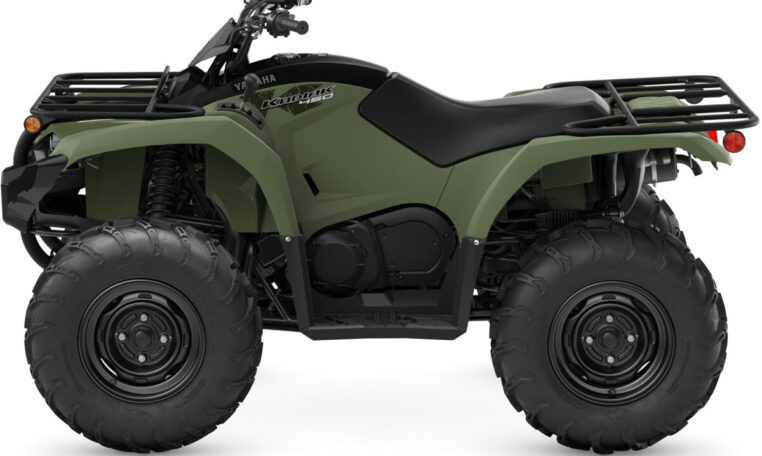

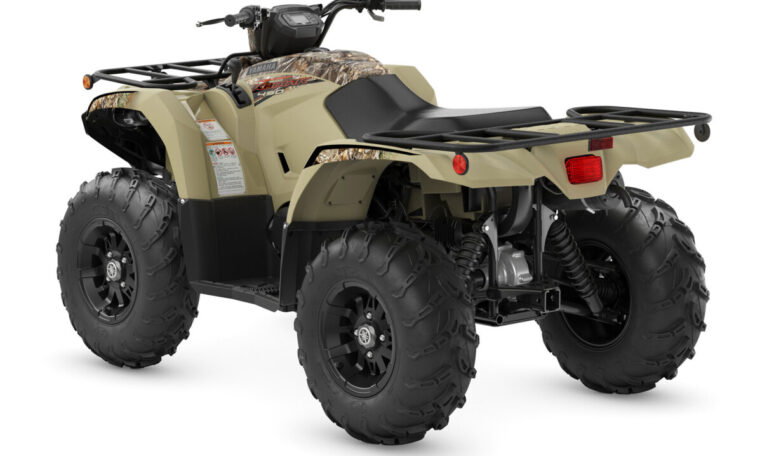

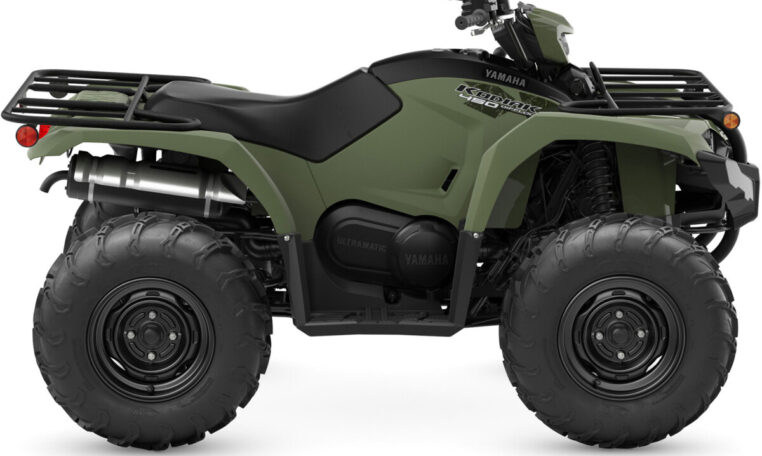

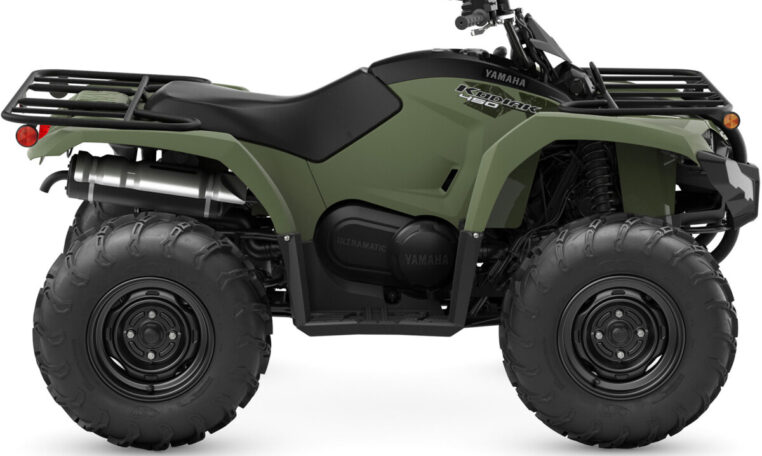

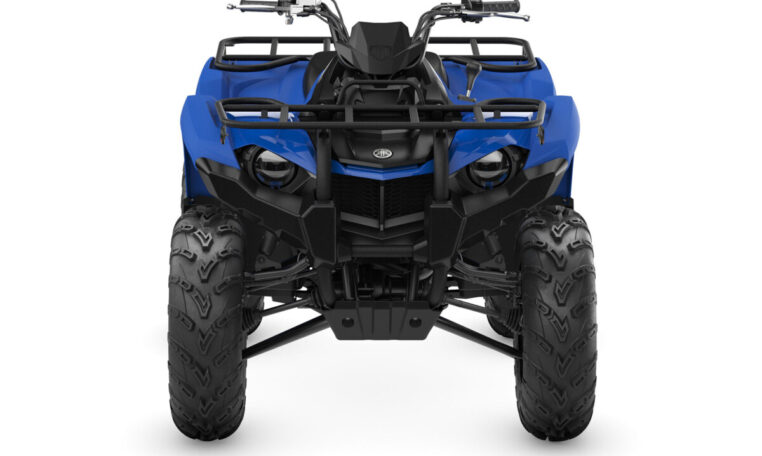

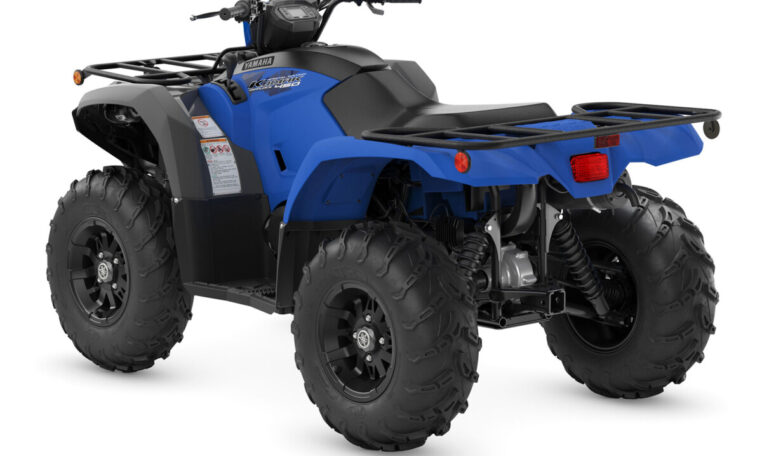

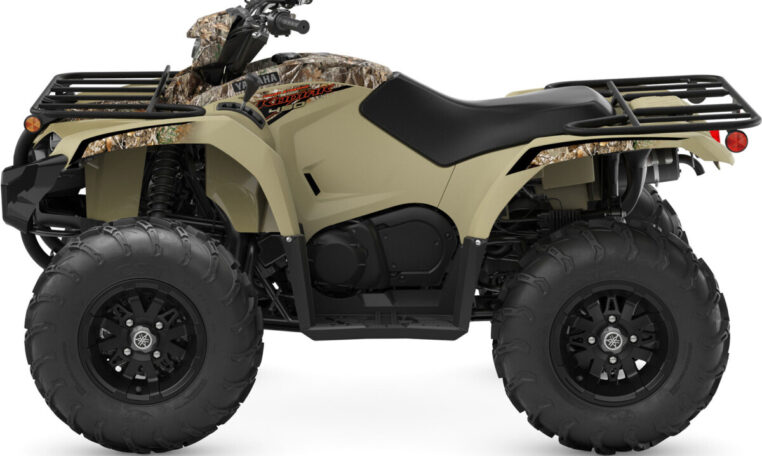

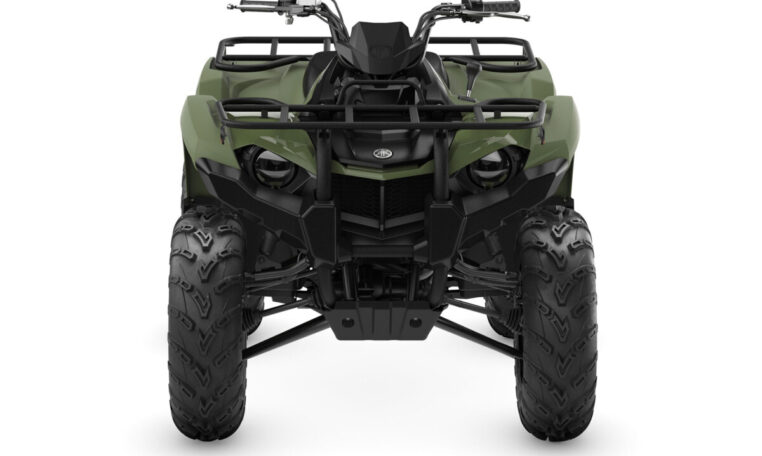

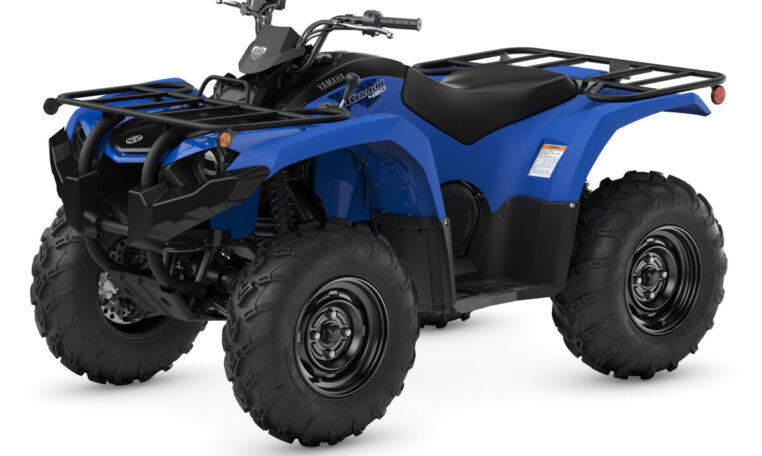

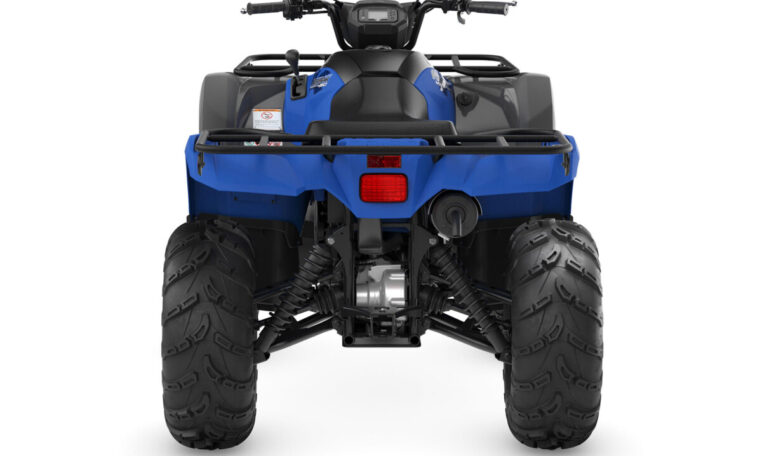

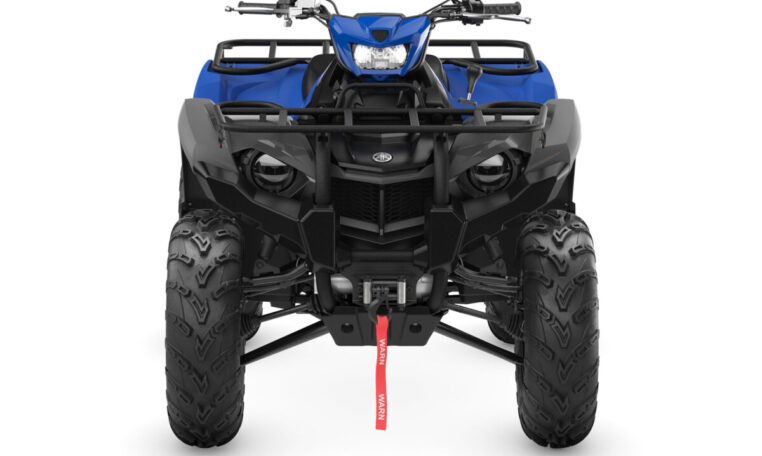

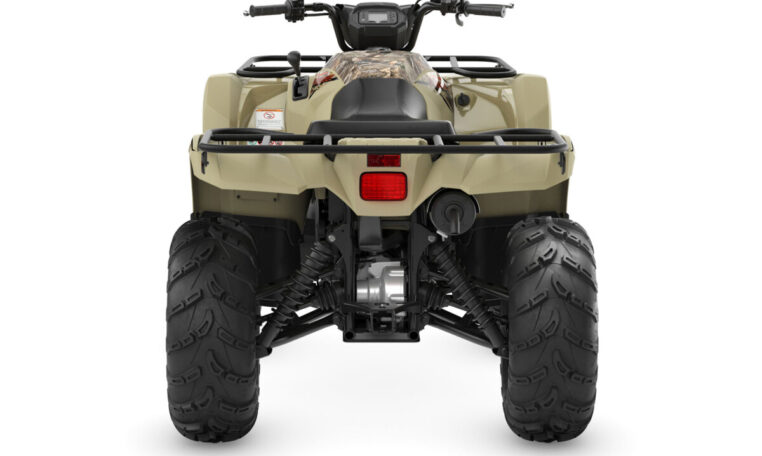

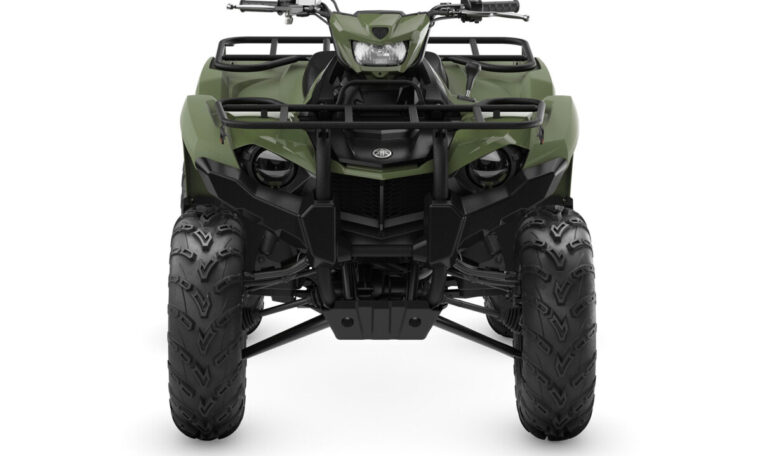

2023 Kodiak 450

Good things come in small packages. The Kodiak 450 With an Ultramatic® automatic transmission, On‑Command® 2WD/4WD and fuel injection, this ATV packs big performance into a mid‑size machine. Perfectto take the uncertainty out of those cold winter starts. Accompanied with marine style, waterproof connectors on key electrical components, the Kodiak 450 as rugged as the terrain you put it through.

There are no features available

Chassis
Suspension (Front)	Independent double wishbone / 171 mm (6.7") of wheel travel
Suspension (Rear)	Independent double wishbone / 189 mm (7.4") of wheel travel
Brakes (Front)	Dual hydraulic disc
Brakes (Rear)	Multi-disc wet brake
Tires (Front)	AT25 x 8-12
Tires (Rear)	AT25 x 10-12

Critical Data
Wet Weight	289 kg (637 lb)
Fuel Capacity	14 L
Rack Capacity (Front)	40 kg (88 lb)
Rack Capacity (Rear)	80 kg (176 lb)
Towing Capacity	600 kg (1,322 lb)
Colour(s)	Steel Blue Tactical Green
Warranty	One year (unlimited mileage)
Length	2,035 mm (80.1")
Width	1,180 mm (46.5")
Height	1,160 mm (45.7")
Wheelbase	1,240 mm (48.8")
Maximum Ground Clearance	245 mm (9.6")
Turn Radius	3.2 m (126")
Tread (Front)	930 mm (36.6")
Tread (Rear)	935 mm (36.8")
Seat Height	855 mm (33.7")

Engine
Engine	Liquid-cooled, SOHC, 4-stroke; 2 valves
Displacement	421 cc
Bore and Stroke	84.5mm x 75mm
Compression Ratio	10:1
Fuel Delivery	Yamaha Fuel Injection (YFI), 34mm
Ignition	TCI
Starting	Electric
Lubrication	Wet sump
Transmission	Ultramatic V-belt with all-wheel engine braking; H, L, N, R, P
Final Drive	On-Command selectable 2WD or 4WD; shaft
