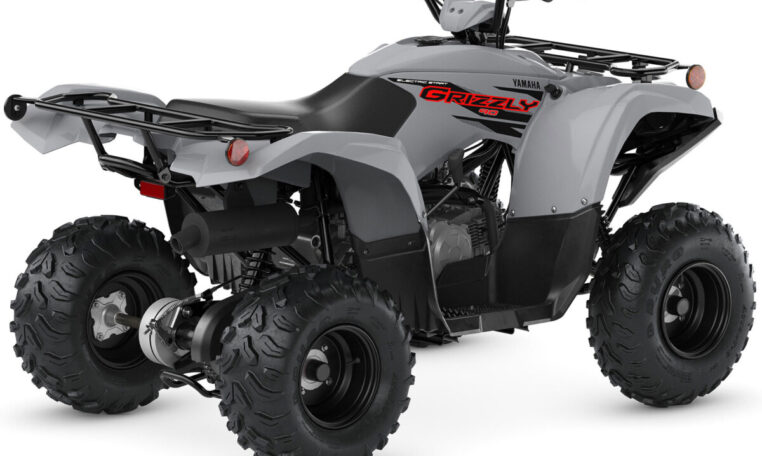

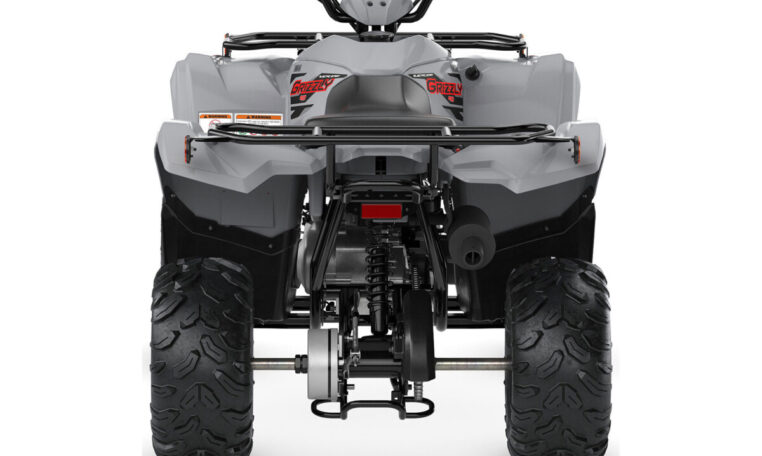

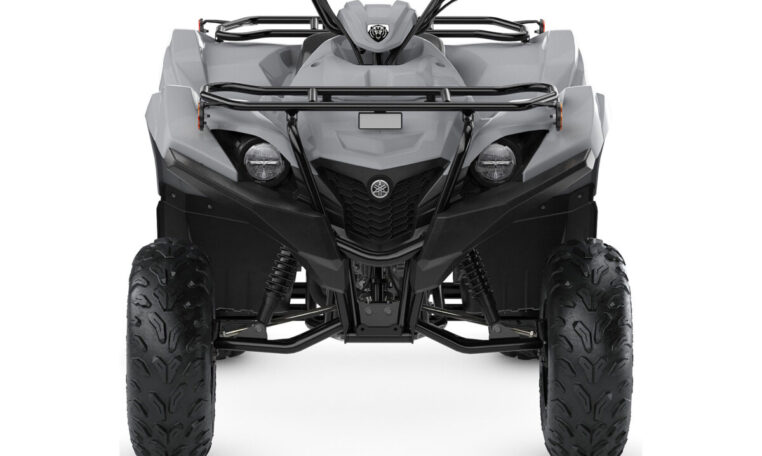

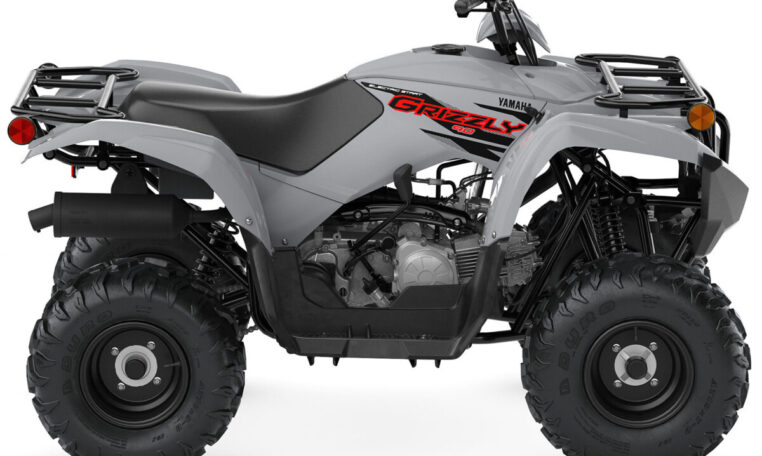

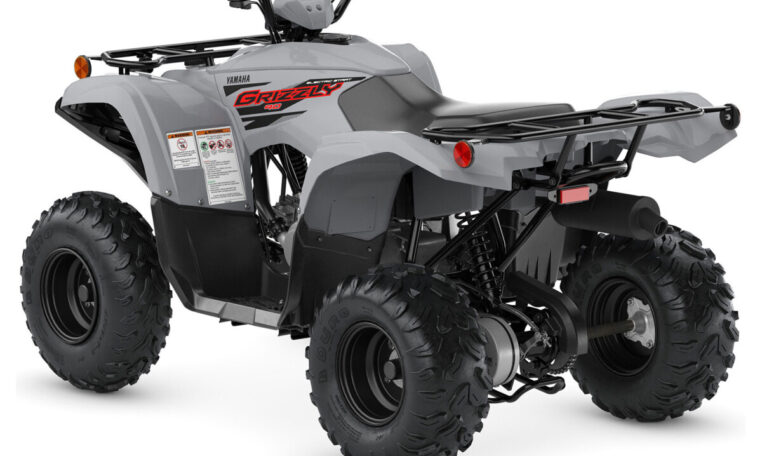

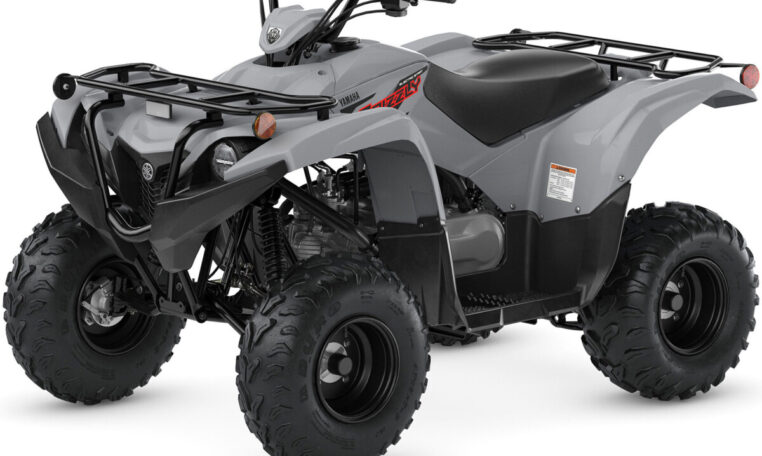

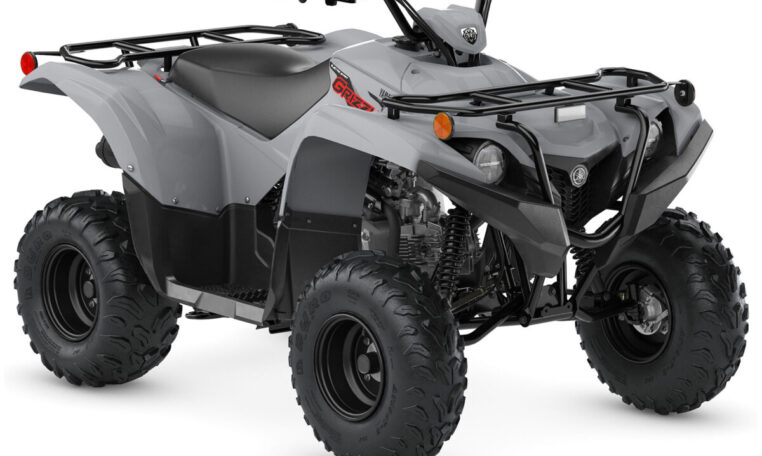

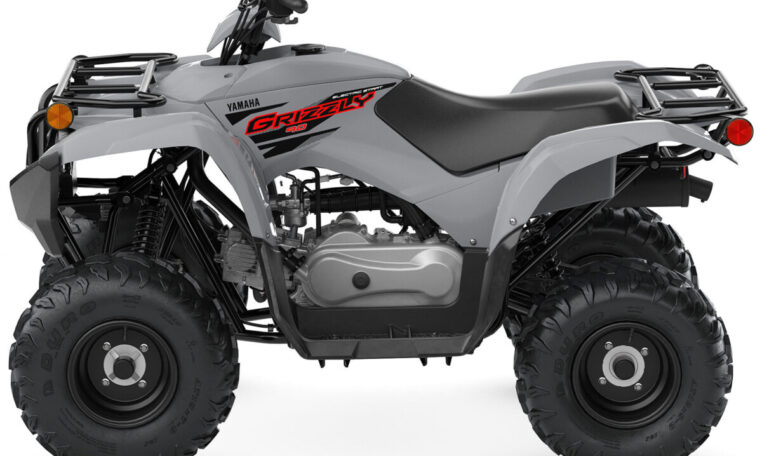

Proven Off‑Road performance and Grizzly‑styling with a 90cc engine and CVT transmission, the Grizzly 90 is perfect for trail riders age 10 and up.With convenient features like electric start, a large comfortable seat, front and rear racks and full-size Grizzly styling, the Grizzly 90 is a perfect machine for young riders who want to start a new off-road adventure.
- There are no features available
CHASSIS |
|
SUSPENSION (FRONT) |
Single A-arm, 5" travel |
SUSPENSION (REAR) |
Monoshock swingarm; 5.7" travel |
BRAKES (FRONT) |
Dual Drum |
BRAKES (REAR) |
Drum |
TIRES (FRONT) |
AT19 x 7-8 |
TIRES (REAR) |
AT18 x 9-8 |
Chassis |
|
Suspension (Front) |
Adjustable, single A-arm / 126 mm (5") of wheel travel |
Suspension (Rear) |
Adjustable, single shock swing arm / 145 mm (5.7") of wheel travel |
Brakes (Front) |
Dual drums |
Brakes (Rear) |
Single Drum / Lockable hand lever parking brake |
Tires (Front) |
AT 18 x 7-8 |
Tires (Rear) |
AT 18 x 9-8 |
CRITICAL DATA |
|
LENGTH |
1,562.1mm (61.5") |
WIDTH |
1031.24mm (40.6") |
HEIGHT |
1005.84 (39.6") |
WHEELBASE |
1031.24 (40.6") |
MINIMUM GROUND CLEARANCE |
104.14mm (4.1") |
SEAT HEIGHT |
728.98mm (28.7") |
WET WEIGHT |
139.6 kg. (307.8 lb.) |
FUEL CAPACITY |
6.4 L (1.7 gal) |
COLOUR(S) |
Yamaha Blue
Armour Grey |
Critical Data |
|
Length |
1485 mm (58.5") |
Width |
1020 mm (40.2") |
Height |
955 mm (37.6") |
Wheelbase |
1030 mm (40.6") |
Minimum Ground Clearance |
100 mm (3.9") |
Seat Height |
750 mm (29.5") |
Wet Weight |
126.5 kg (279 lb) |
Fuel Capacity |
6.4 L |
Colour(s) |
Team Yamaha Blue
White |
Warranty |
One year (unlimited mileage) |
ENGINE |
|
ENGINE |
Air-cooled, SOHC 4-stroke; 2 valves |
DISPLACEMENT |
90cc |
BORE AND STROKE |
47.0mm x 51.8mm |
COMPRESSION RATIO |
9.2:1 |
FUEL DELIVERY |
13mm Carburetor |
IGNITION |
CDI |
STARTING |
Electric & Kickstart |
TRANSMISSION |
CVT; F, N, R |
FINAL DRIVE |
O-ring Chain Drive |
Engine |
|
Engine |
Air-cooled, SOHC, 2-valve, single |
Displacement |
89.9cc |
Bore and Stroke |
47 mm x 51.8 mm |
Compression Ratio |
9.2 : 1 |
Fuel Delivery |
TK13 mm carburetor |
Ignition |
CDI |
Starting |
Electric with auxillary kick |
Transmission |
Fully automatic CVT with reverse |
Final Drive |
O-ring chain |
