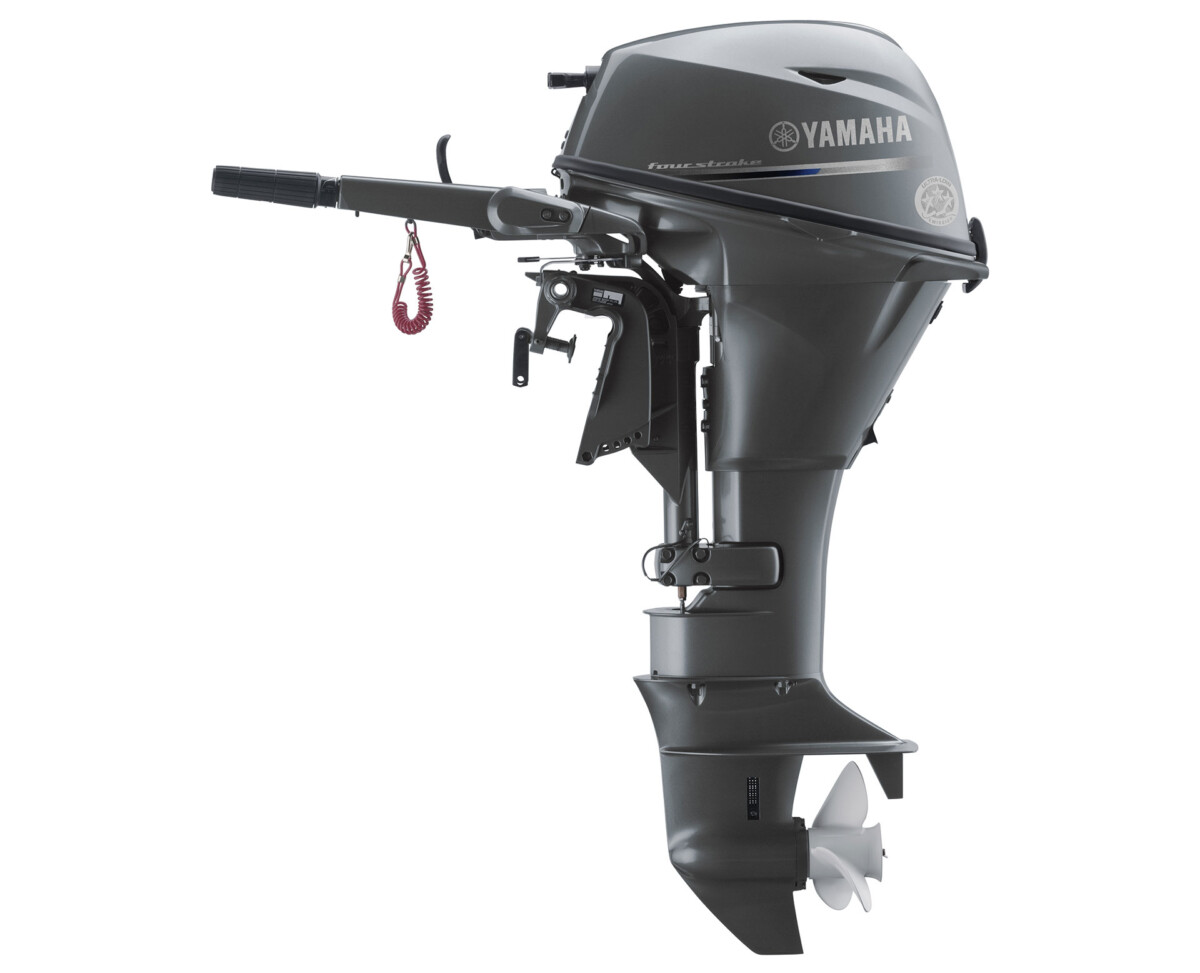

2026 F15 Portable
Features
Head Of The Class
The powerful, new twin-cylinder SOHC design boasts the largest displacement in its class.
Easy Does It
Maintenance is a breeze with easily accessible oil and fuel system components.
Front & Centre
Convenient front-mounted controls facilitate smooth shifting, easy, shallow water drive and single action steering friction adjustment.
Carry On
The carrying handle and brims are designed for easier carrying, mounting, and removing the outboard motor.
Anti-Corrosion Protection
Yamaha's unique YDC-30 aluminium alloy protects the engine's exterior parts, while a zinc coating, high-quality stainless steel and 5-stage exterior coating offers long-lasting protection inside and out.
Specifications
Dimensions
- Dry Weight
- 50kg (111lbs) (MSH)
- Shaft Length
- 15" - 20"
Engine
- Alternator Output
- 12V-10 Amps (6.5Amp @ 1000rpm)
- Bore & Stroke
- 63.0x58.1mm (2.48x2.29in)
- Compression Ratio
- 9.3
- Cooling
- Water/Thermostatic Control
- Degree of Trim/Tilt
- 4 positions/71°
- Displacement
- 362cc (22.1ci)
- Engine Type
- Four_Stroke, SOCH In-Line 2 cylinders
- Exhaust
- Through Propeller Hub
- Fuel Delivery
- Carburetor (1)
- Gear Ratio
- 13/27 (2.08)
- Gear Shift
- F/N/R
- Ignition
- CDI Mircocomputer
- Induction System
- SOHC
- Lubrication
- Wet sump
- RPM Range
- 5000-6000
- Starting
- Manual or electric
Fuel & Lubrication
- Oil Capacity
- 1.6L (1.7 qt)
- Recommended Fuel
- Regular Unleaded
- Recommended Oil
- Yamalube 4-M FC-W 10W-30 or 20W-40
