ENGINE TYPE

• Yamaha-built 402 cc, Low Emission Single Cylinder 60° Incline OHV

LUBRICATION SYSTEM

• Splash-style positive oil lubrication

OIL CAPACITY

• 1.1 L  (1.16 U.S. quart, 1100 cc), Yamalube 10W-30

AIR CLEANER

• Two-stage, urethane-foam pre-cleaner, and high-capacity pleated paper cartridge

COOLING SYSTEM

• Forced Air

FUEL SYSTEM

• Electronic fuel injection

STARTING SYSTEM

• Starter generator with pedal start system

FRAME

• HybriCore™ Chassis features a robotic welded HybriCore™ Chassis features a robotic welded automotive ladder-style steel frame protected with a multi-step full-immersion phosphate treatment, electro-deposition epoxy-based coating, and an electrostatic applied polyester/urethane powder topcoat

BODY

• Custom-formulated thermoplastic olefin painted with a two-part top coat of high-luster automotive-grade polyurethane

STEERING

• Self-compensating double reduction helical rack-and-pinion

FRONT SUSPENSION

• Tru-Trak II™ fully independent automotive-style strut suspension

REAR SUSPENSION

• Unit swing arm with dual rate coil springs over hydraulic shock absorbers

BRAKES

• Self-adjusting mechanical, front and rear wheel drum brakes

CARGO BED MAX LOAD

• 362.87 kg (800 lb)

ROLLING TRAILER MAX WEIGHT

• 680.38 kg (1,500 lb)

MAX TONGUE WEIGHT

• 68.03 kg (150 lb)

VEHICLE RATED CAPACITY

• 680.38 kg (1,500 lb)

CARGO BED DIMENSIONS

• 1043.94 mm L x 1165.86 mm W x 299.72 mm H  (41.1" L x 45.9" W x 11.8" H)

• 402 cc, low-emission single cylinder 60° incline OHV
• Independent front suspension with cradle-smooth rear suspension
• 12.9 cu ft cargo bed, 800 lbs (362 kg) capacity, with easy one-hand tail gate release
• Capable 23” tires

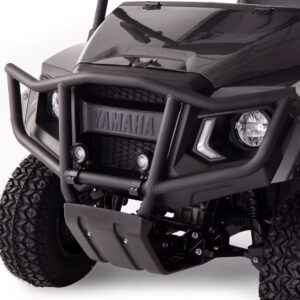

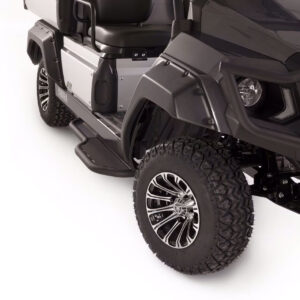

• Front brush guard and fender flares
• Receiver hitch
• Side fill gas tank
• Under hood storage compartment
